Case Erector / Case Former

Case Erector/Case Former Manufacturers, Suppliers in Pune, India

Technosmart Automation Pvt. Ltd. are leading Case Erector manufacturers, suppliers in Pune India |Technosmart Automation Pvt Ltd, Pune, Maharashtra, India

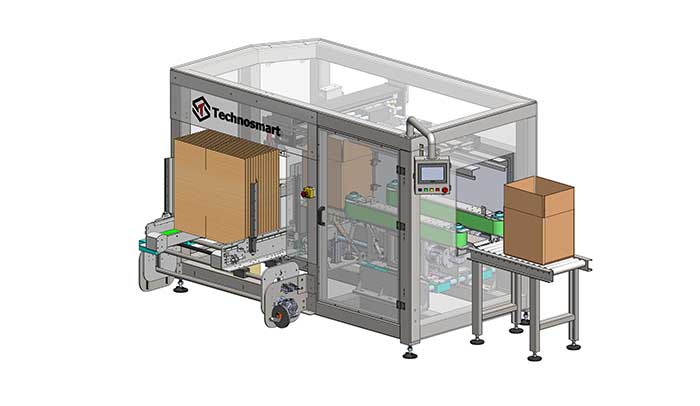

Case Erector are case forming machines that automatically form, fold and seal corrugated cartons from flat boxes. Case erecting systems remove the need for operators to stop packing products to build their cartons.

These packaging machines are available in semi-automatic and automatic formats and can form between 6 cases to 20 cases a minute.

A Case Erector can be easily integrated into any existing packaging line. Pair it with a Case Sealer for a complete form, fill and seal packaging solution. The addition of a case erector machine to your packaging line can be justified even with a capacity as low as 500 cases a day.

Features :

  • Reliable case formation and transfer
  • Drive system ensures case is square during sealing
  • Right hand or left hand case loading magazine
  • Quick & easy changeover of format parts
  • Construction – Mild steel or stainless-steel tubular frame
  • Optional Devises -Barcode Scanner, Vision System, Ink Jet Printer, Code Embossing
  • Machine guarding with safety interlocks
  • Interlocks – Guard Open, Flat Box Low Level, Low Air Pressure

Specifications :

  • Speed - Up to 20 cases/min
  • Case Range*
    • Min – 250(L) x 200(W) x 150(H) mm.
    • Max – 500(L) x 280(W) x 400(H) mm.
  • Case Type - RSC, HSC
  • Tape Size - 1.5 ~ 2”
  • Machine Dimensions – L-3500mm, W-1800mm, H-1800mm
  • Machine Weight – 1500kg (Approx.)
