Cartoner / Cartoning Machine

Cartoner Manufacturers in Pune, Suppliers in Pune, India

Technosmart Automation Pvt. Ltd. are leading Cartoner Manufacturers, Suppliers in Pune, India |Technosmart Automation Pvt. Ltd. Pune, Maharashtra, India

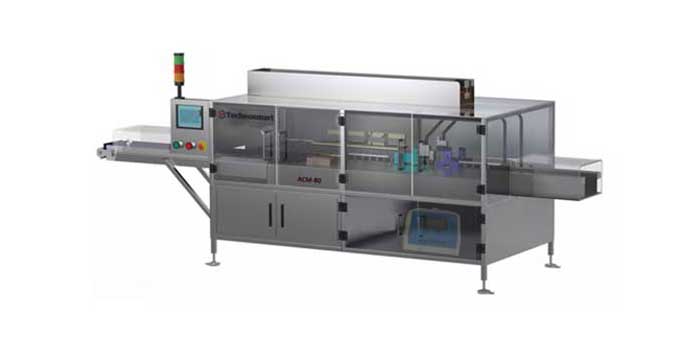

A Cartoner or Cartoning Machine, is a packaging machine that forms cartons: erect, close, folded, side seamed and sealed cartons.

Its operation includes pick up a flat carton (known as a blank), erect it into a rectangular shape, push the product into the carton (or fill it through a vertical flow), and close the carton via end flaps or a fold-over lid. Machines can be semi-automatic or fully automatic.

Cartoning machines can be divided into two types :

1. Horizontal Cartoning machines – Product feeding from side

2. Vertical Cartoning machines – Product feeding from top

Features :

  • Machine options - Intermittent and Continuous Motion
  • Automatic Carton Feeder
  • Automatic Leaflet or Booklet Feeder
  • Hot-Melt Glue Application System
  • Sensing Systems -No product/ no carton and no carton/ no load
  • Carton Closing - Straight or reverse tuck, or hot melt glue
  • Construction – Mild Steel or Stainless-steel tubular frame
  • Optional Devises -Barcode Scanner, Vision System, Ink Jet Printer, Code Embossing
  • Machine guarding with safety interlocks
  • Interlocks – Guard Open, Carton Low Level, Glue low level, Low Air Pressure
  • Product Infeed – Auto / Manual

Specifications :

  • Speed – Up to 120cpm
  • Carton Size
    • Min: (L)65mm x(W)25mm x(H)25mm
    • Max: (L)200mm x(W)150mm x(H)100mm
  • Machine Dimensions – L-2500mm, W-1500mm, H-1800mm
  • Machine Weight – 1500kg (Approx.)
